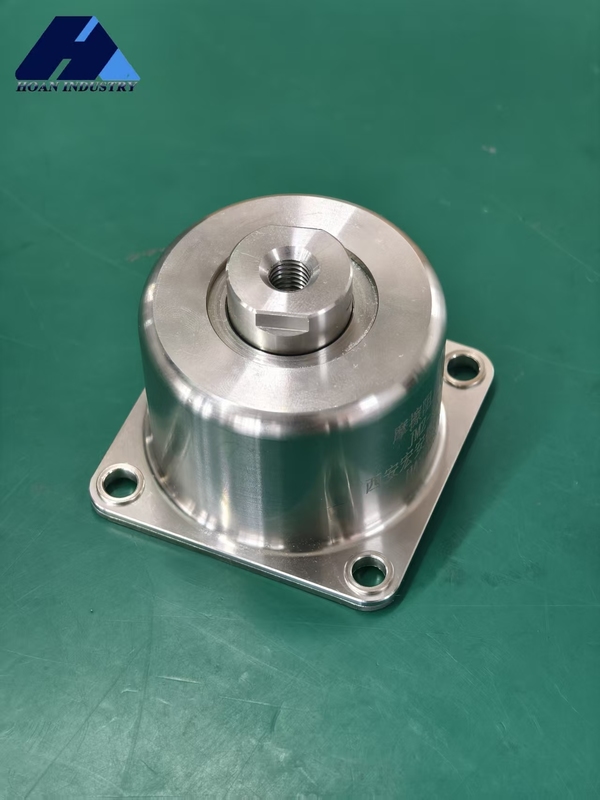

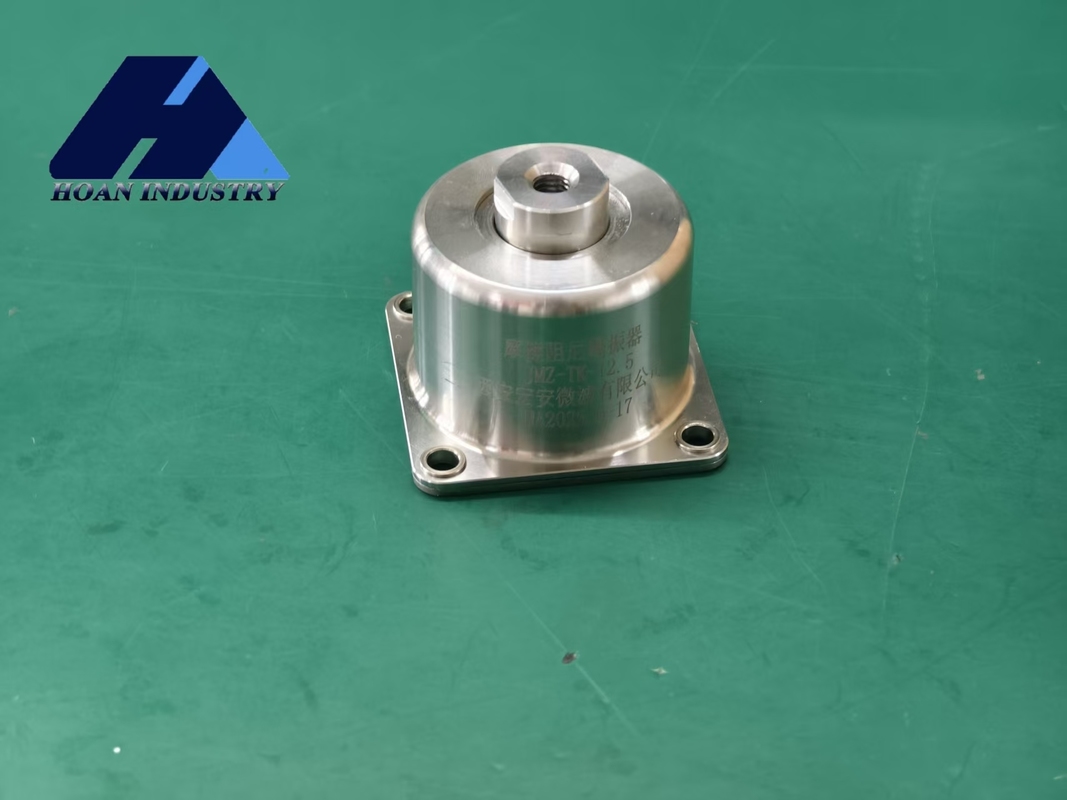

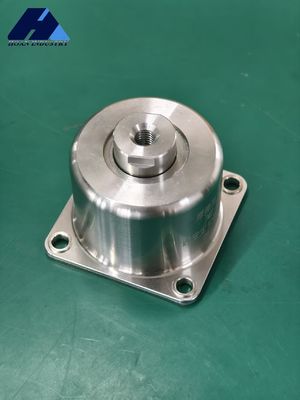

Name: JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK1-50A
Availability: InStock

Rumah > Produk > Pengisolasi Spring >

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Helical Structure Vibration Isolator

Spring Steel Vibration Isolator

Vertical Mounting Vibration Isolator

Tempat asal:

CINA

Nama merek:

Hoan

Nomor model:

JMZ-TK1-50A

Hubungi Kami

Minta Kutipan

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Rincian produk

Struktur:

Spiral

Suhu operasi:

Tergantung pada model spesifiknya

Resistensi korosi:

Tinggi

Aplikasi:

Mount Engine Industri

Rentang frekuensi:

Tergantung pada model spesifiknya

Bahan:

Baja pegas

Kata kunci produk:

Isolator penghapusan gesekan

Orientasi pemasangan:

Vertikal

Jaminan:

Tergantung pada model spesifiknya

Jenis pemasangan:

Pemasangan atas atau pemasangan bawah

Tersedianya:

Tersedia secara luas

Komponen inti:

Bantalan

Ketangguhan:

Tinggi

Menyoroti:

Helical Structure Vibration Isolator

Spring Steel Vibration Isolator

Vertical Mounting Vibration Isolator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Produk terkait

Anti-Vibration Spring Isolator Mount Air Conditioner Kompresor HVAC Sistem 800kg-900kg

Dapatkan Harga Terbaik

Isolator getaran pegas untuk kipas anti getaran shock absorber 1000kg-3300kg

Dapatkan Harga Terbaik

JMZ-TK-8A Rubber Shock Absorber untuk Peluncuran Rudal yang Stabil dan Akurat dalam Pertahanan Militer

Dapatkan Harga Terbaik

Video

Inovatif Vibration Damping Solution JMZ-TK-6A Rubber Shock Absorber dari Xi an Hoan Microwave Co Ltd

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JMZ-TK1-50A Friction Damping Vibration Isolators

The Ultimate Solution for Performance and Precision in Precision Instruments

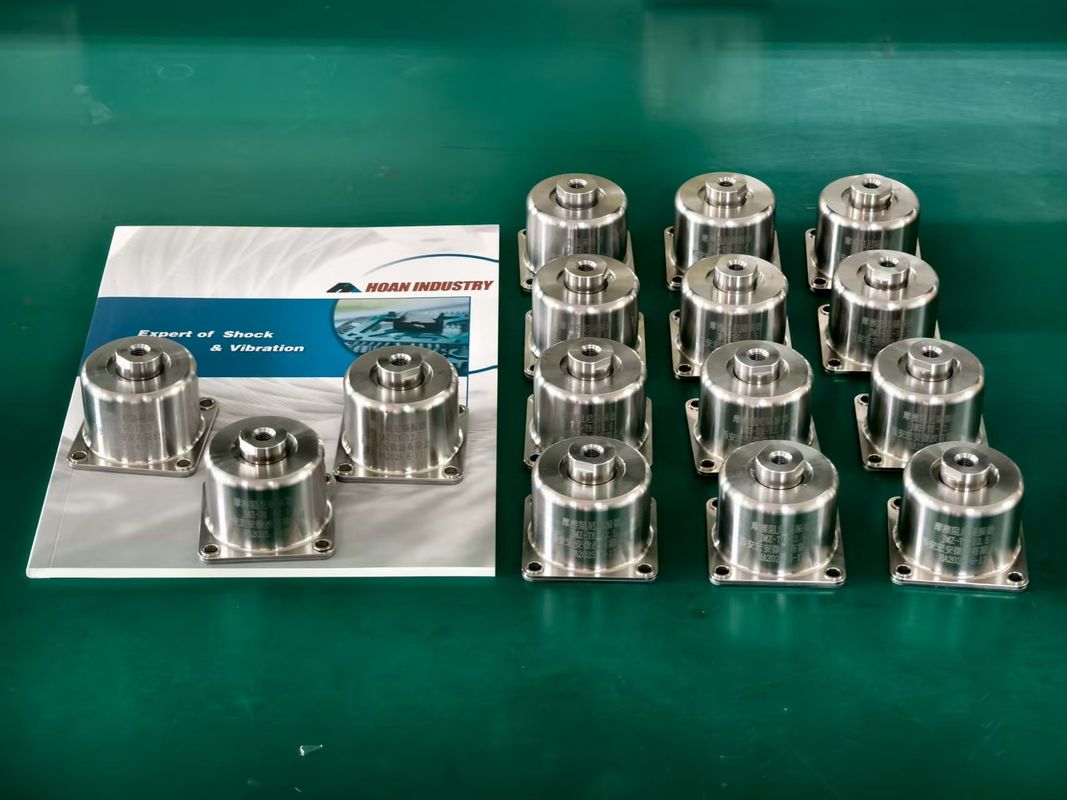

JMZ-TK Series

Redefining Stability: Exploring the Core Technology of JMZ-TK Friction Damping Vibration Isolators

In precision instruments, communication equipment, and high-end manufacturing, even minor vibrations can significantly impact performance and precision. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave Co., Ltd. utilize revolutionary "friction damping" technology to provide a stable operating platform for high-precision equipment.

Unlike traditional vibration isolators that rely on rubber elasticity or liquid viscosity, the JMZ-TK series features an innovative multi-layer friction damping mechanism. This technology simulates structural energy dissipation principles by converting mechanical kinetic energy into thermal energy through controlled micro-friction between special composite material interfaces.

Key Advantages:

Amplitude-independent damping: Provides stable energy dissipation regardless of vibration amplitude
Temperature resistant: Eliminates issues of traditional viscous dampers in extreme temperatures
Wide operating range: Maintains performance across varied environmental conditions
Long service life: 10-year lifespan with consistent performance

The JMZ-TK series serves as a structural guardian for critical equipment including radar systems, satellite communication antennas, and high-precision machine tools, delivering absolute stability for demanding applications.

Structural Dimension Diagram

Installation Dimensions (mm)

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement			Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
					Vertical Direction up(δ1)	Vertical Direction down(δ2)	horizontal (δ3)
JMZ-TK-2.5A	25	20～30	33	42	4	4	4	3	100g	10
JMZ-TK-4A	40	30～50	33	42	4	4	4	3	100g	10
JMZ-TK-5A	50	40～60	33	42	4	4	4	3	100g	10
JMZ-TK-6A	60	50～70	33	42	4	4	4	3	100g	10
JMZ-TK-7A	70	60～80	33	42	4	4	4	3	100g	10
JMZ-TK-8A	80	70～90	33	42	4	4	4	3	100g	10
JMZ-TK1-25A	250	200～300	20	70	7	8	7	3	60g	10
JMZ-TK1-40A	400	300～480	20	70	7	8	7	3	60g	10
JMZ-TK1-50A	500	400～600	20	70	7	8	7	3	60g	10
