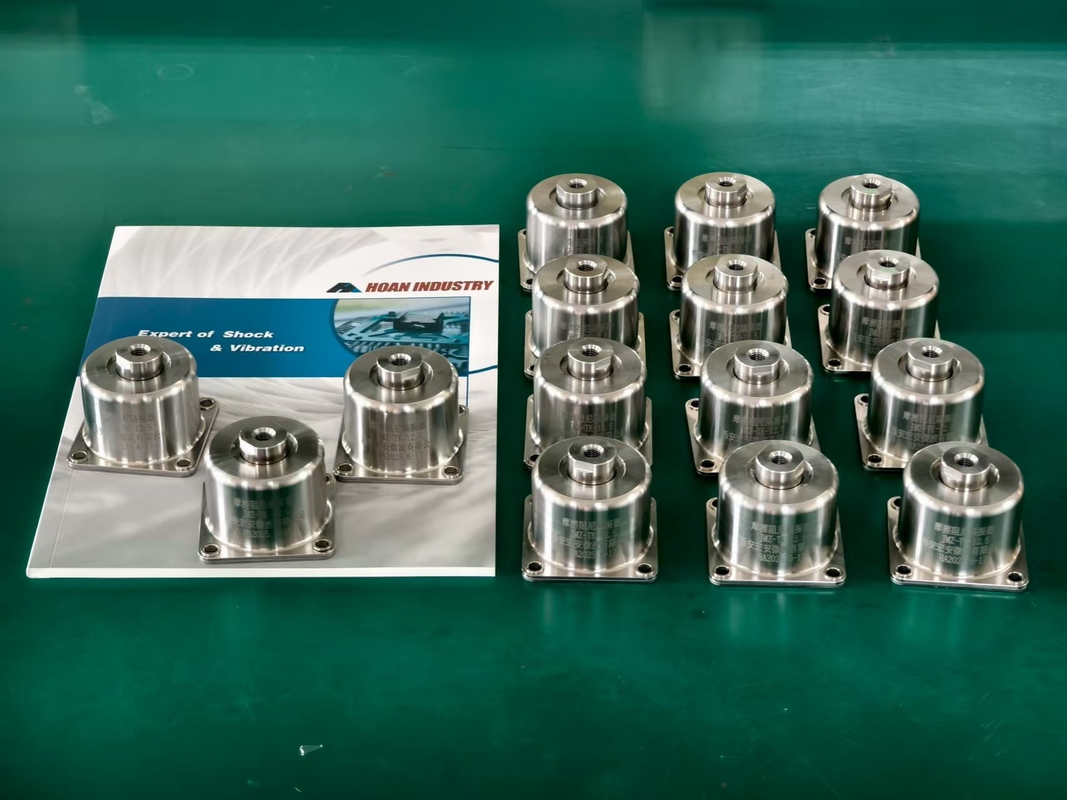

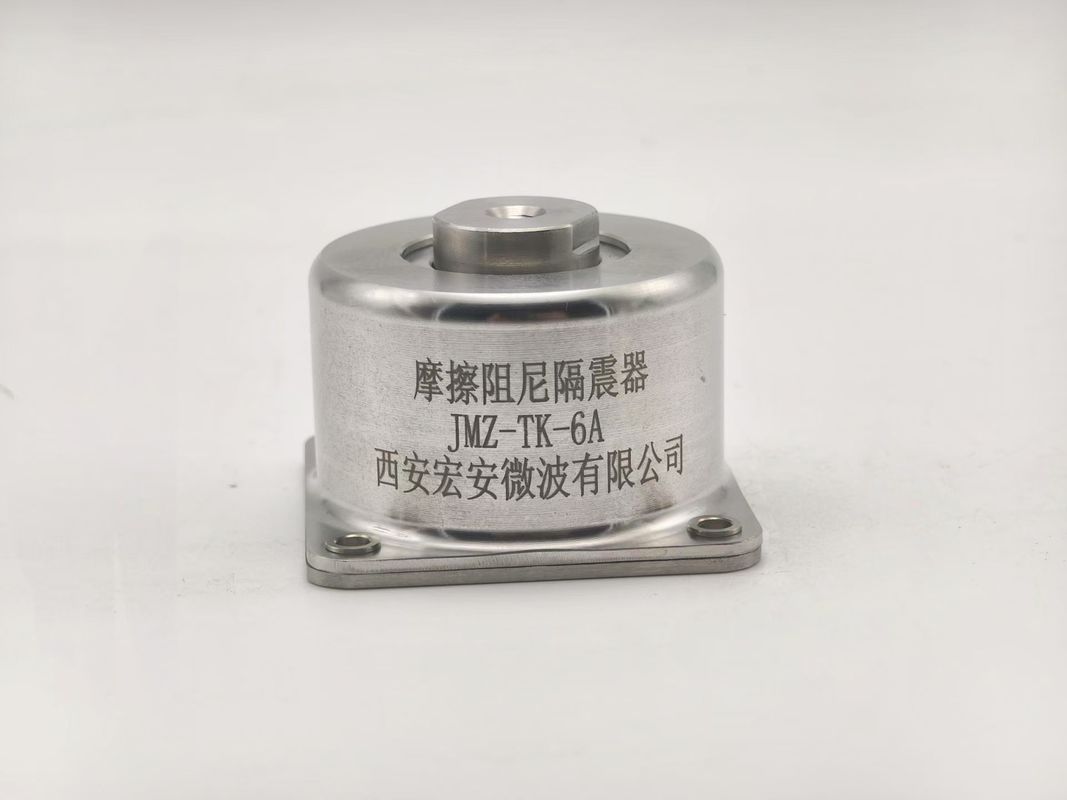

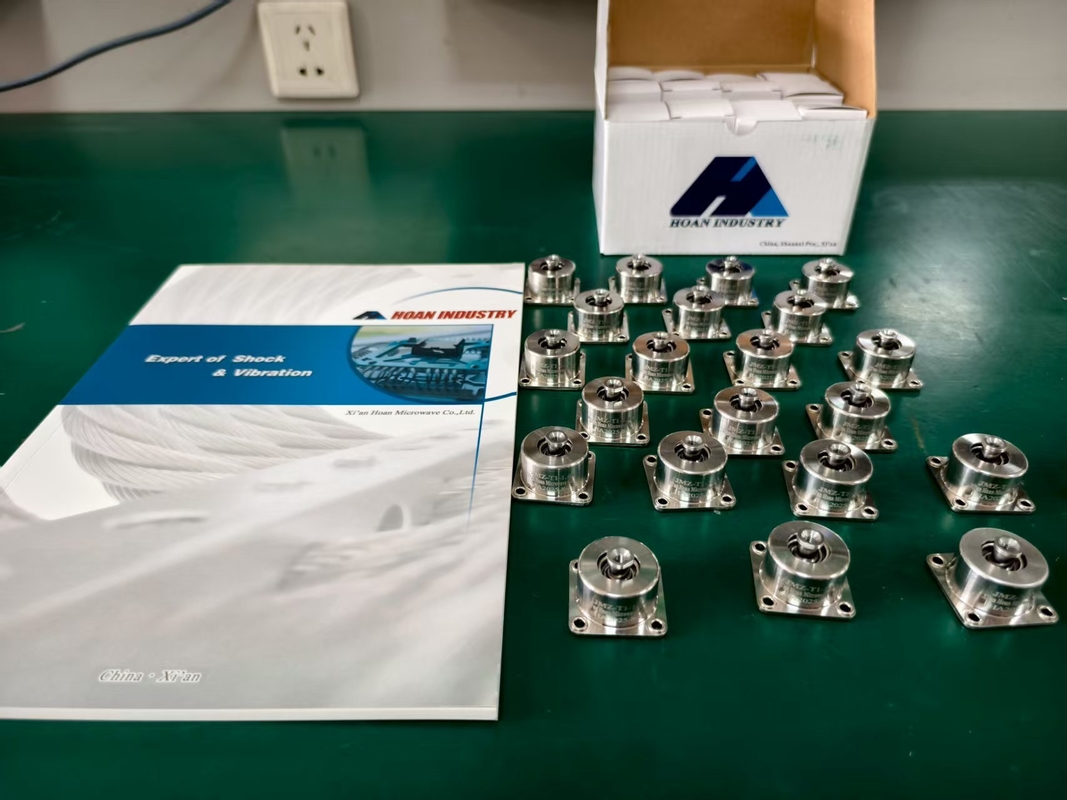

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

95% Isolation Efficiency Spring Isolator

32mm Overall Width Vibration Isolator

UL Listed JMZ-T1 Series

Tempat asal:

CINA

Nama merek:

Hoan

Nomor model:

JMZ-T1-1.2

Hubungi Kami

Minta Kutipan

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Rincian produk

sertifikasi:

Terdaftar di UL, sesuai RoHS

Diameter:

Bervariasi tergantung pada aplikasinya

Bahan:

Musim semi

Lebar keseluruhan:

32mm

Metode instalasi:

Pemasangan atau gantung

Suhu operasi:

Bervariasi tergantung pada model

Warna:

Perak

Ketangguhan:

Tinggi

Kapasitas muatan:

Bervariasi tergantung pada model

Komponen inti:

Bantalan

Efisiensi isolasi:

Hingga 95%

Orientasi pemasangan:

Vertikal

Penggunaan:

Isolasi getaran

Kondisi:

Baru

Jenis instalasi:

Horizontal/vertikal

Menyoroti:

95% Isolation Efficiency Spring Isolator

,

32mm Overall Width Vibration Isolator

,

UL Listed JMZ-T1 Series

Syarat Pembayaran & Pengiriman

Kuantitas min Order

4

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Produk terkait

Harga yang bagus JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation on line

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Dapatkan Harga Terbaik

Harga yang bagus JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation on line

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Dapatkan Harga Terbaik

Harga yang bagus JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control on line

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Dapatkan Harga Terbaik

Harga yang bagus JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty on line

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JMZ-T1-1.2 Spring Isolator for High-Performance Experiments

JMZ-T1 Series: Advanced Vibration Isolation Technology

The JMZ-T Series represents a breakthrough in vibration isolation for sensitive scientific research environments. Engineered for zero-vibration requirements, this series delivers exceptional performance through innovative design and material selection.

Key Features

Ultra-low natural frequency (typically below 30Hz) for effective isolation of structural vibrations
Precision friction damping mechanism that effectively reduces micro-vibrations
Passive mechanical operation eliminates electromagnetic interference (EMI)
Significantly improves signal-to-noise ratio (SNR) for sensitive measurements
Maintains measurement environment cleanliness with pure physical isolation

Structural Dimensions

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation 0

Technical Specifications

Model	Max PZ Load (kg)	PZ Displacement (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Freq (Hz)	Temp Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Curve

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation 1

Impact Response Curve

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation 2
