JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Name: JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.45
Availability: InStock

Nama Merek:	Hoan
Nomor Model:	JMZ-T1-0.45
MOQ:	4
Ketentuan Pembayaran:	MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Warna:

Perak

Setelah layanan garansi:

Dukungan online

Orientasi pemasangan:

Vertikal

Membentuk:

Berbentuk silinder

Ketangguhan:

Tinggi

Suhu operasi:

0-150 ° F.

Kondisi:

Baru

Pengurangan kebisingan:

Efektif

Bahan:

Baja galvanis

Jaminan:

1 tahun

Efisiensi isolasi:

Hingga 95%

Daya tahan:

Tahan lama

Metode instalasi:

Dipasang atau tertanam

Lebar keseluruhan:

32mm

Kustomisasi:

Tersedia atas permintaan

Menyoroti:

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Deskripsi Produk

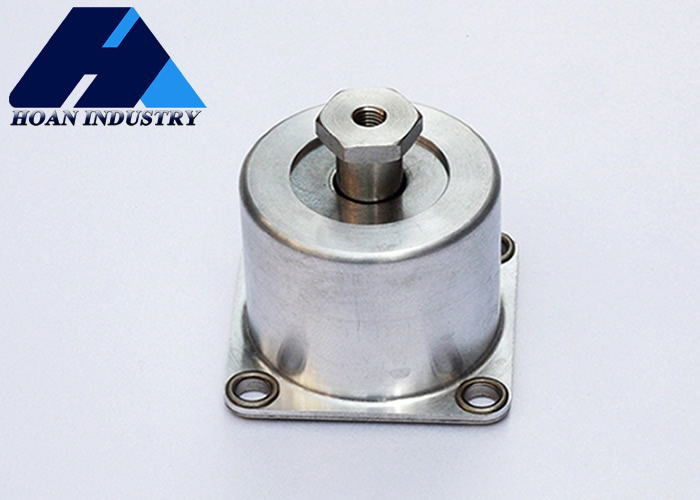

JMZ-T1-0.45 Friction Damping Vibration Isolators

Performance Multiplier for Precision Equipment

The JMZ-T1 Series friction damping vibration isolators from Xi'an Hoan Microwave go beyond basic vibration isolation to become true performance enhancers for your equipment. These isolators provide the environmental stability required for ultra-high-precision applications.

Key Benefits

Extremely low natural frequency for superior vibration isolation
High-efficiency damping reduces vibration interference below theoretical limits
Effectively suppresses self-generated vibrations from internal moving components
Enhances measurement accuracy by an order of magnitude
Improves product yield and shortens R&D cycles

Ideal Applications

Scanning Electron Microscopes (SEMs), Lithography Machines, Atomic Force Microscopes (AFMs), and other precision equipment requiring ultimate stability.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
