Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

Rumah > Produk > Pengisolasi Spring >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Tempat asal:

CINA

Nama merek:

Hoan

Nomor model:

JMZ-T-2.6

Hubungi Kami

Minta Kutipan

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Rincian produk

Tersedianya:

Tersedia secara luas

Nama Produk:

Pengisolasi Spring

Lebar keseluruhan:

60mm

Metode instalasi:

Dipasang atau tertanam

Jenis pemasangan:

Pelat Atas

Struktur:

Spiral

Pemeliharaan:

Pemeliharaan rendah

Resistensi kejut:

Kuat

Jenis:

Isolator Getaran

Setelah layanan garansi:

Dukungan online

Laporan Tes Mesin:

Tidak tersedia

Jaminan:

1 tahun

Gaya desain:

Industri

sertifikasi:

Terdaftar di UL, sesuai RoHS

Aplikasi:

Mount Engine Industri

Menyoroti:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Produk terkait

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

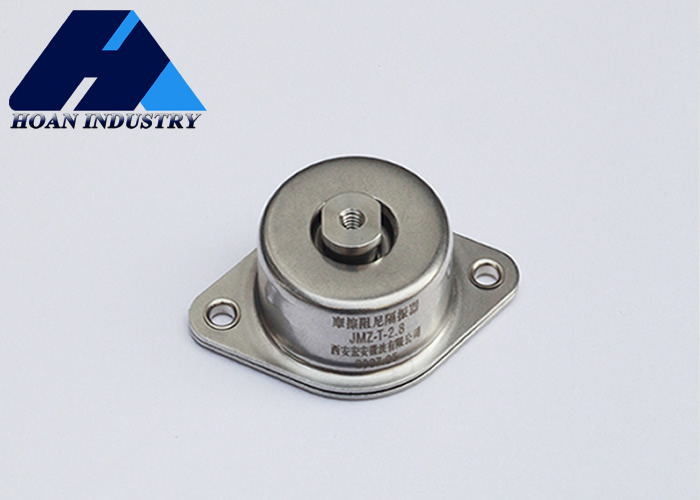

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration curve:

Impact curve:

Application Example
