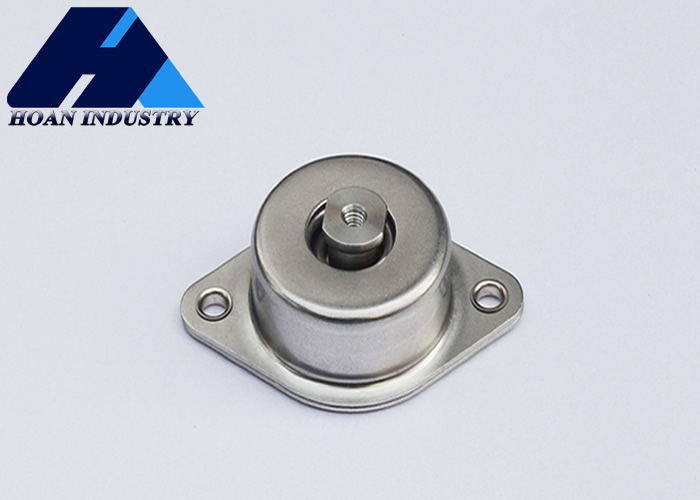

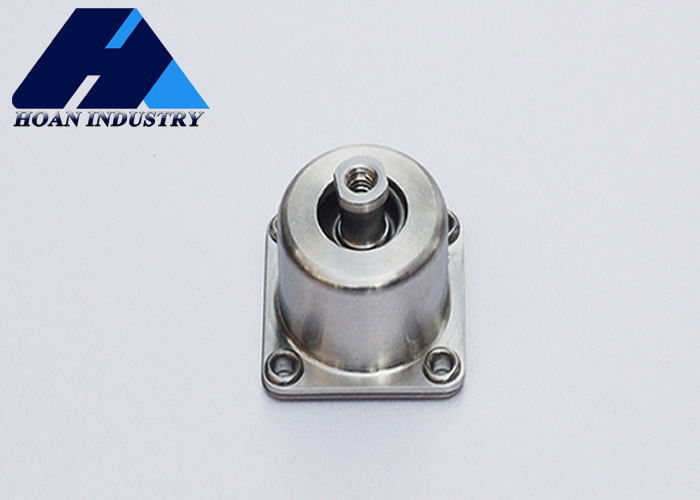

Name: JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-1.4
Availability: InStock

Rumah > Produk > Pengisolasi Spring >

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

Temperature Range Spring Isolator

95% Isolation Efficiency Vibration Isolator

Precision Manufacturing Friction Damping Isolator

Tempat asal:

CINA

Nama merek:

Hoan

Nomor model:

JMZ-T-1.4

Hubungi Kami

Minta Kutipan

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

Rincian produk

Penyerapan kejut:

Bagus sekali

Aplikasi:

Mount Engine Industri

sertifikasi:

Terdaftar di UL, sesuai RoHS

Kisaran suhu:

-40 ° F hingga 180 ° F.

Jenis instalasi:

Horizontal/vertikal

Pengurangan kebisingan:

Efektif

Tersedianya:

Tersedia secara luas

Ketangguhan:

Tinggi

Kondisi:

Baru

Kustomisasi:

Tersedia atas permintaan

Metode instalasi:

Berlari

Gaya desain:

Industri

Efisiensi isolasi:

Hingga 95%

Kata kunci produk:

Isolator penghapusan gesekan

Menyoroti:

Temperature Range Spring Isolator

95% Isolation Efficiency Vibration Isolator

Precision Manufacturing Friction Damping Isolator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Produk terkait

Peredam Getaran JMZ-TK1-7A dengan Diameter 4 inci untuk Pengendalian Getaran Frekuensi Tinggi dan Ultra-Rendah

Dapatkan Harga Terbaik

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Dapatkan Harga Terbaik

JMZ-TK1-40A Disesuaikan Silinder Friksi Damping Vibration Isolator dengan Instalasi Pemasangan untuk Energi & Pertambangan

Dapatkan Harga Terbaik

JMZ-TK-8A Solusi Khusus Isolator Spring Baja Rinsing dengan penyerapan kejut yang sangat baik dan pemasangan mudah

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JMZ-T-1.4 Friction Damping Vibration Isolators for Precision Manufacturing

JMZ-T Series Overview

Master Vibration, Reshape the Stability of Precision Equipment - The Hoan Microwave JMZ-T Series Vibration Isolators provide groundbreaking solutions for precision manufacturing, aerospace, and high-end laboratory applications where even minor vibrations can compromise performance and accuracy.

Advanced Vibration Isolation Technology

The JMZ-T Series utilizes innovative friction damping technology with a non-viscous damping mechanism to efficiently dissipate vibration energy from both external environments and internal equipment operation. This solution effectively absorbs low-frequency ground vibrations and mid-to-high frequency operational vibrations, converting them into heat energy for dissipation.

Key Benefits

Provides stable working platform for precision equipment
Significantly improves processing quality and measurement accuracy
Extends equipment service life and reduces maintenance costs
Ideal for lithography machines, electron microscopes, CMMs, and precision machining centers

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration and impact performance characteristics of the JMZ-T Series:

Vibration Performance Curve

Impact Performance Curve

Customer Application
