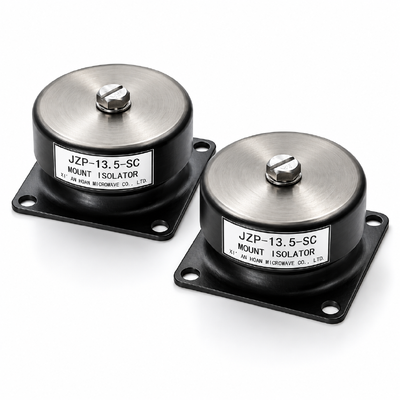

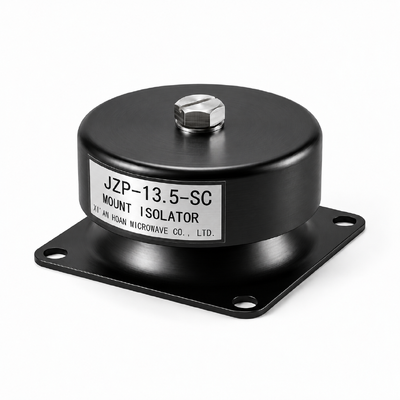

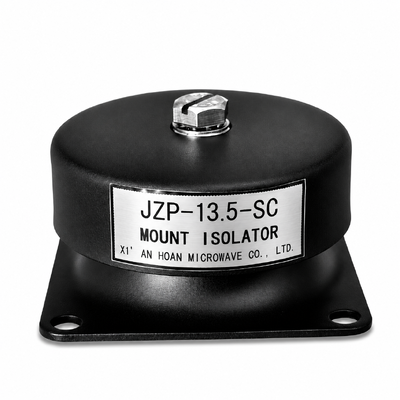

JZP-13.5-SC Rubber Shock Absorber Creep Resistant Metal-to-Rubber Bonded 13.5kg Cyclic Loading Endurance Mount

Name: JZP-13.5-SC Rubber Shock Absorber Creep Resistant Metal-to-Rubber Bonded 13.5kg Cyclic Loading Endurance Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-13.5-SC
Price: Bisa dinegosiasikan USD
Availability: InStock

Nama Merek:	Hoan
Nomor Model:	JZP-13.5-SC
MOQ:	4 buah
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shaanxi, Tiongkok

Sertifikasi:

ISO9001:2015

Jenis Instalasi:

Horizontal/vertikal

Suhu kerja:

-45 hingga +65 C

Frekuensi resonansi:

41,5 +/- 5Hz

Rasio redaman:

Minimal 0,13

Defleksi:

Maks. 0,3 mm

Uji dampak:

100G, 12 siklus

Ukuran Lubang Pemasangan:

5,5 mm

Menyoroti:

Fatigue Resistant Rubber Isolator

Metal-to-Rubber Bonded Shock Absorber

Creep Free Cyclic Loading Damper

Deskripsi Produk

JZP-13.5-SC Rubber Shock Absorber: 13.5 kg Friction Damping Mount for Continuous Cyclic Loading Direct answer: The JZP-13.5-SC is a 60 mm diameter rubber-to-metal vibration isolator rated at 13.5 kg per mounting point, with a resonant frequency of 41.5±5 Hz, a damping ratio of 0.13 or above and static deflection held to 0.3 mm or less. It is specified for equipment that repeats load cycles for years rather than months. What does friction damping contribute in this design?
