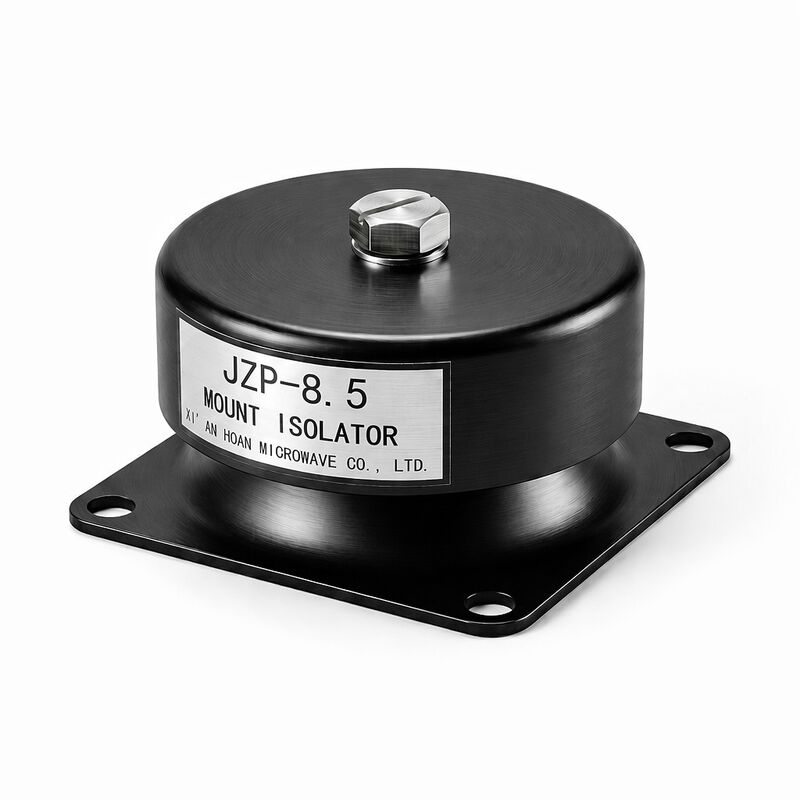

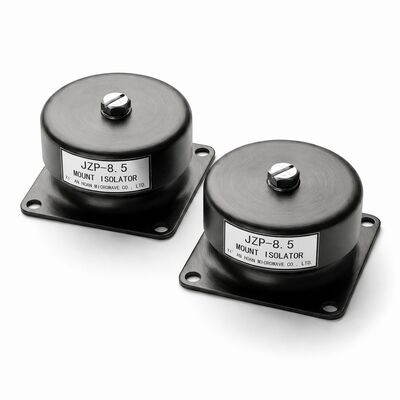

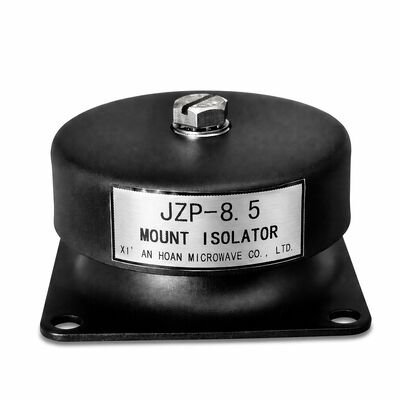

JZP-8.5 Rubber Shock Absorber Acoustic Bridge Prevention Sound Decoupling Flame Retardant Mount

Name: JZP-8.5 Rubber Shock Absorber Acoustic Bridge Prevention Sound Decoupling Flame Retardant Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-8.5
Availability: InStock

Nama Merek:	Hoan
Nomor Model:	JZP-8.5
MOQ:	10 buah
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shaanxi, Tiongkok

Sertifikasi:

ISO 9001:2015

Bahan:

Karet Alam + Baja Berlapis Seng

Kekerasan (Pantai A):

55 ± 5

Beban Nominal (Pz):

8,5kg

Defleksi Statis:

≤ 0,3 mm

Frekuensi resonansi:

35±3Hz

Suhu Operasional:

-45 °C hingga +65 °C

Resistensi guncangan:

100 g / 6 mdtk

Respon Puncak:

≤ 3,6 km/s²

Rasio redaman:

0,5

Efisiensi isolasi:

≥ 90%

Diameter Keseluruhan (D):

58 mm

Tinggi Keseluruhan (T):

29 mm

Benang pemasangan:

Jarak Lubang Pemasangan (B):

60mm

Peringkat Tahan Api:

UL94 V-0

Warna:

Hitam

Berat:

0,05Kg

Menyoroti:

Acoustic Bridge Prevention

Structure-Borne Sound Decoupling

Flame Retardant Shock Mount

Deskripsi Produk

JZP-8.5 Rubber Shock Absorber — Acoustic Bridge Prevention & Flame Retardant Vibration Isolator The JZP-8.5 is a rubber-metal bonded vibration isolator rated for 8.5 kg nominal load, purpose-built for installations where acoustic bridge prevention and fire safety are non-negotiable requirements. By interrupting structure-borne vibration transmission paths at the mounting interface, it delivers measurable noise reduction in connected assemblies while its flame-retardant
