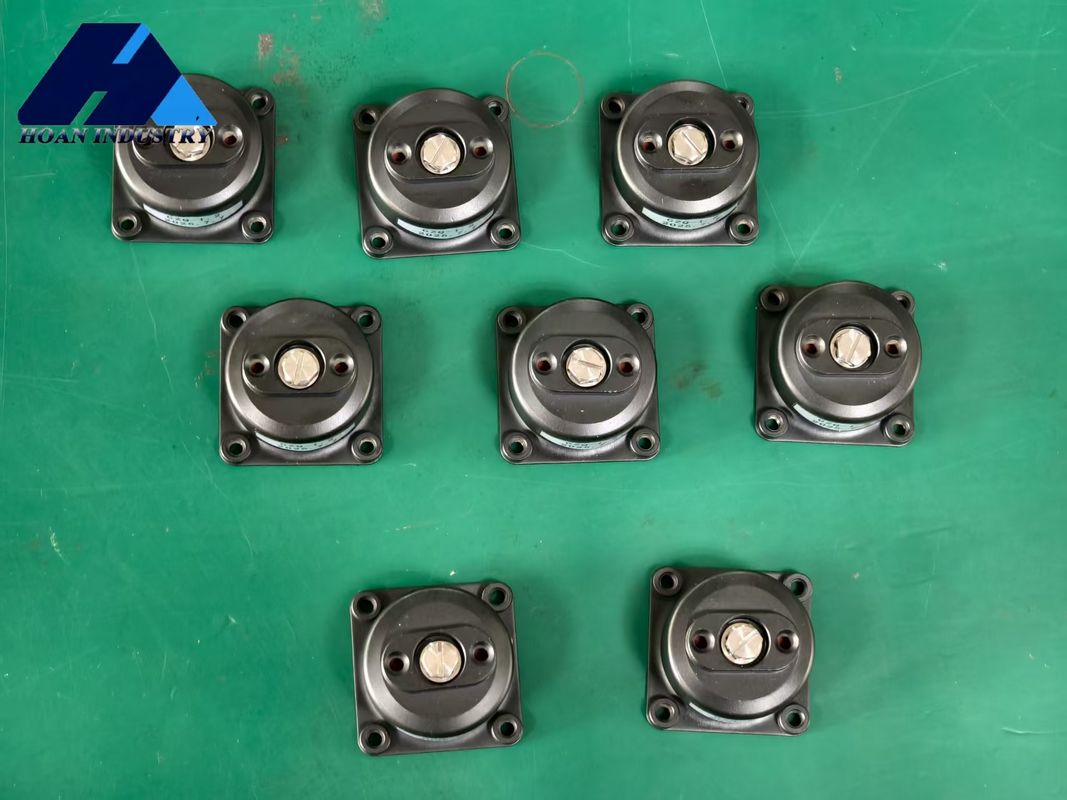

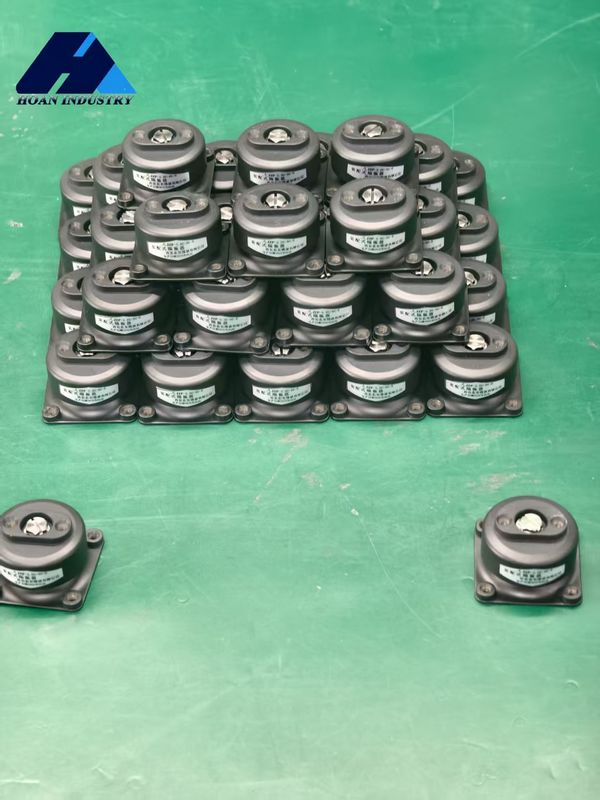

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC
Availability: InStock

Rumah > Produk > peredam kejut karet >

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Tempat asal:

Tiongkok

Nama merek:

Hoan

Nomor model:

JZP-5.5B-SC

Hubungi Kami

Minta Kutipan

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Rincian produk

Tahan Cuaca:

Bagus sekali

Frekuensi getaran:

5-50HZ

Instalasi:

Mudah untuk Menginstal

Aplikasi:

Otomotif, Mesin, Mesin

Industri yang Berlaku:

Energi & Penambangan

Perlawanan:

Kimia, Panas, dan Cuaca

Frekuensi isolasi:

5Hz

Karakteristik:

Elastis bagus, ketahanan aus

Panjang:

3-24 inci

Fleksibilitas:

Fleksibel

Fitur:

Isolasi getaran

Muatan statis maks:

5.5kg

Menyoroti:

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Produk terkait

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Dapatkan Harga Terbaik

Peredam Kejut Karet JZP-5.0B-SC dengan Rentang Frekuensi 10Hz hingga 100Hz Ketahanan Getaran Tinggi untuk Validasi Efisiensi di Kendaraan Produk Baru 2025

Dapatkan Harga Terbaik

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Dapatkan Harga Terbaik

JZP-3.5B-SC Modular Rubber Shock Absorber dengan 5-6KG Load Range 1:2 Compression Ratio dan 40g/11ms Shock Resistance

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
