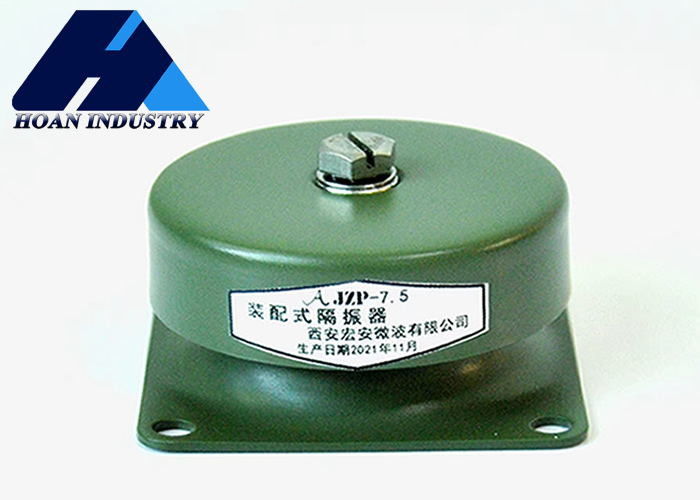

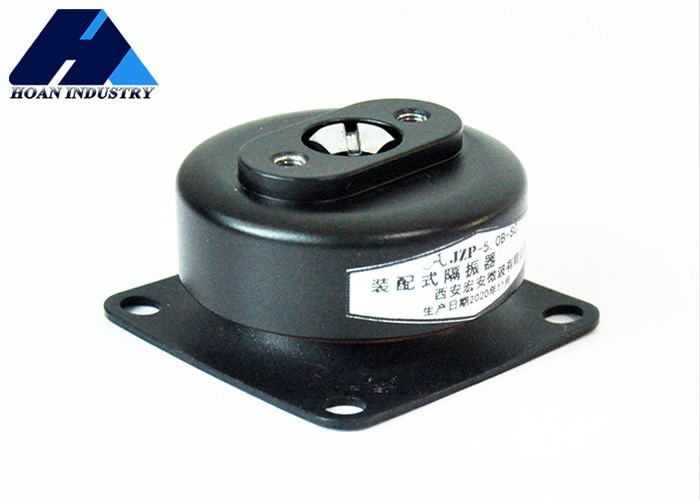

Name: JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.5B-SC
Availability: InStock

Rumah > Produk > peredam kejut karet >

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

Tempat asal:

Tiongkok

Nama merek:

Hoan

Nomor model:

JZP-2.5B-SC

Hubungi Kami

Minta Kutipan

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

Rincian produk

Fitur:

Isolasi getaran

Tipe Pemasangan:

Berulir

Metode instalasi:

Baut-on

Frekuensi resonansi:

5-10Hz

Kesesuaian:

Universal

Warna:

Hitam

Kompresi:

Disesuaikan

Frekuensi resonansi:

30Hz

Isolasi getaran:

Hingga 90%

Aplikasi:

Otomotif, Mesin, Peralatan Industri

Produk relatif:

Peredam latar belakang

Menyoroti:

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Produk terkait

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Dapatkan Harga Terbaik

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Dapatkan Harga Terbaik

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Dapatkan Harga Terbaik

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JZP-B-SC Series Rubber Shock Absorber for On-Vehicle Electronic Equipment

Redefine the Stable Foundation for On-Vehicle Electronic Equipment

Xi'an Hoan's JZP Series Vibration Isolators provide unmatched stability for sophisticated electronic equipment in special-purpose vehicles, including emergency rescue, mobile broadcasting, military communication, and environmental monitoring platforms.

Advanced Vibration Isolation Technology

Breaks the fatal energy transmission path of traditional rigid connections
Modular structure with high-performance elastic damping materials
Creates a low-pass filter effect for near-static microenvironment
Prevents loose screws, solder joint cracks, and component failure

Precision Design for Broad Applications

The JZP Series offers multiple models with varying load-bearing capacities and natural frequencies to precisely match equipment requirements, from lightweight data collectors to heavy cabinet-type servers.

Simple modular installation requiring no complex tools
Rapid deployment on vehicle chassis or brackets
Improves equipment integration efficiency and reliability

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration Performance

Impact Performance
