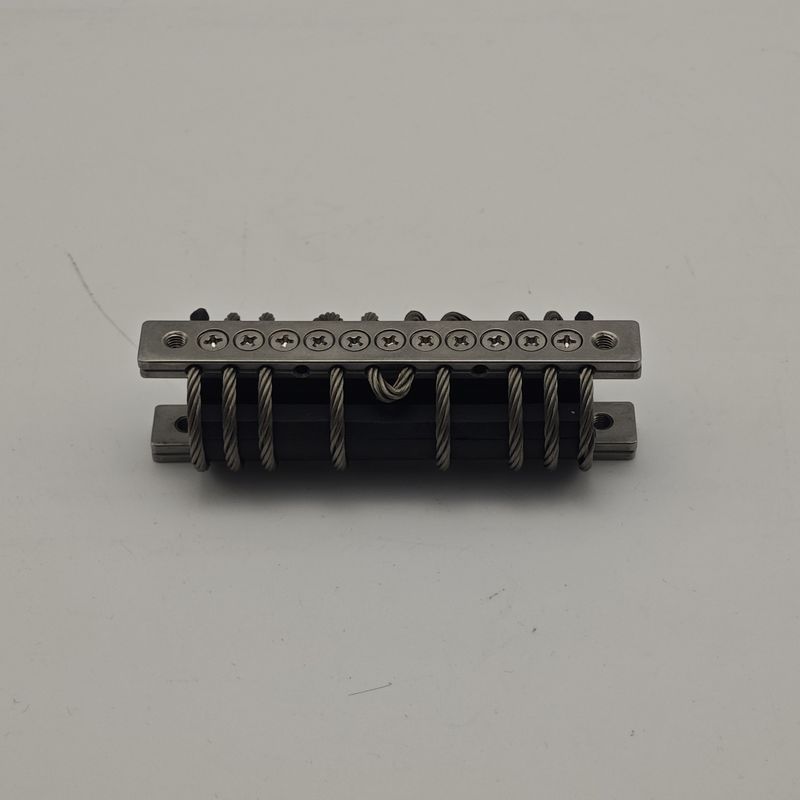

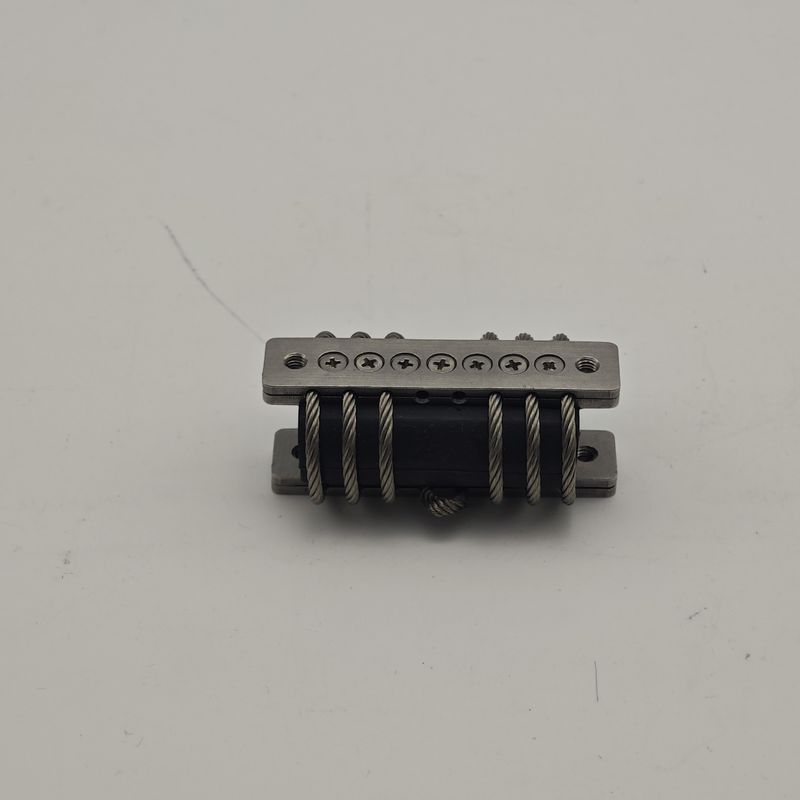

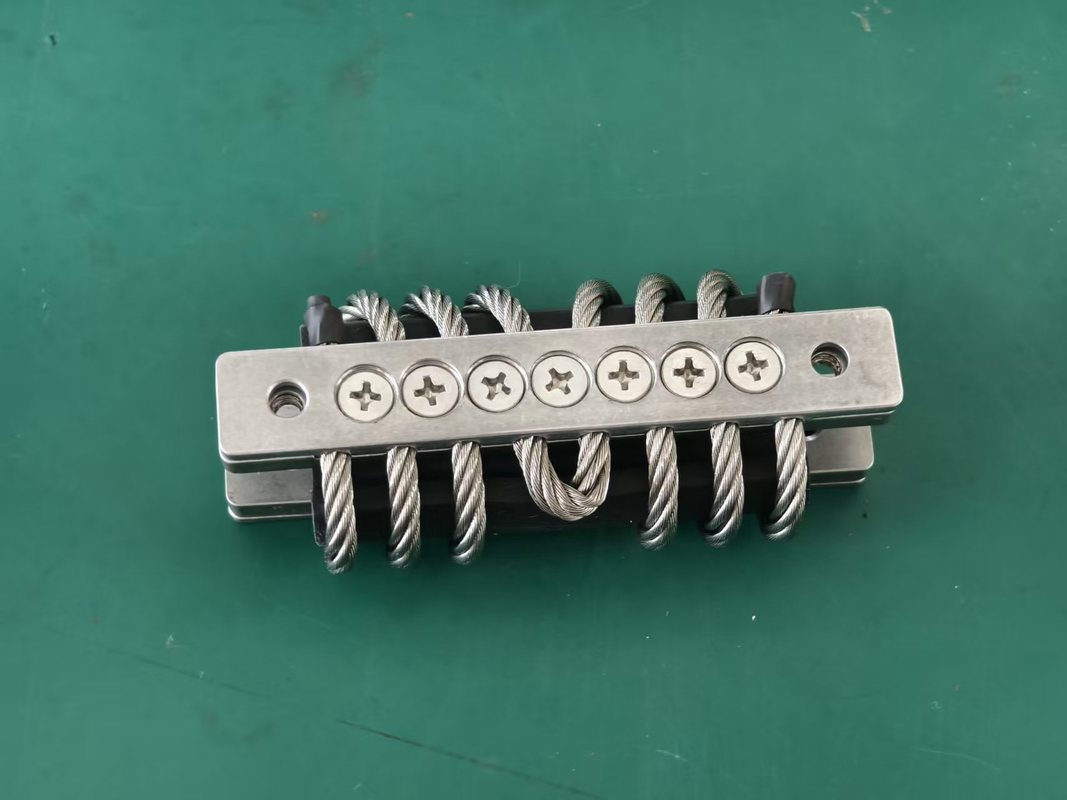

Name: GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-50A(N)
Availability: InStock

Rumah > Produk > Produk yang disesuaikan >

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

Tempat asal:

Tiongkok

Nama merek:

Hoan

Nomor model:

GX-50A(N)

Hubungi Kami

Minta Kutipan

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Rincian produk

Suhu layanan:

1000 ℃ -1800 ℃

Resistensi goncangan termal:

Ketahanan kejut termal yang baik

Ketebalan:

33mm

Opsi Pengiriman:

Dapat disesuaikan

Disesuaikan:

Kontrol kualitas:

Dapat disesuaikan

Opsi pembayaran:

Dapat disesuaikan

Pelayanan pelanggan:

Tersedia

Stabilitas Kimia:

Stabilitas kimia yang sangat tinggi

Pencetakan:

Pemasaran:

pasar Eropa dan Amerika

Waktu produksi:

Dapat disesuaikan

Ukuran:

Dapat disesuaikan

Menyoroti:

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C,D/A,T/T,D/P,MoneyGram,Western Union

Produk terkait

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Dapatkan Harga Terbaik

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Dapatkan Harga Terbaik

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Dapatkan Harga Terbaik

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

Upgrade Your Equipment's Vibration Control with GX-50AN Customized Products by Xi'an Hoan Microwave

GX-N Series Wire Rope Vibration Isolators

When selecting a vibration isolator, the initial purchase cost is merely the tip of the iceberg. The true value lies in the product's service life, maintenance requirements, and prevention of downtime losses.

Long-lasting Durability, Controllable Costs

Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver exceptional total lifecycle value with their ultra-long fatigue life and near-maintenance-free features.

Key advantages of the GX-N Series:

Constructed with high fatigue strength stainless steel wire rope for minimal performance degradation
Maintains stability through millions of vibration cycles without cracking or deformation
Potential to last the entire service life of your equipment
Significantly reduces spare parts and maintenance labor costs
Ensures stable operation of main equipment to prevent costly downtime

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and Impact Performance

Technical Parameters

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Accord with National Military Standard GJB150-16
