JGX-1598D-557B Multi-Axis Wire Rope Shock Isolator Featuring Versatile Mounting Across Diverse Equipment Platforms

JGX-1598D-557B — One Isolator Platform, Every Mounting Challenge, All Six Axes Covered

Equipment designers face a persistent tension: the isolation solution that fits one machine's mounting footprint rarely adapts cleanly to the next. Different bolt patterns, asymmetric loads, angled mounting surfaces, legacy retrofit constraints—each variation traditionally demands a different isolator part number. The JGX-1598D-557B Wire Rope Vibration Isolator resolves this with a configurable mounting platform that supports bar-to-bar, bar-to-plate, 45° inclined, and 90° vertical orientations while delivering verified 6-degree-of-freedom isolation in every configuration.

Mounting Versatility Without Compromising Isolation Performance

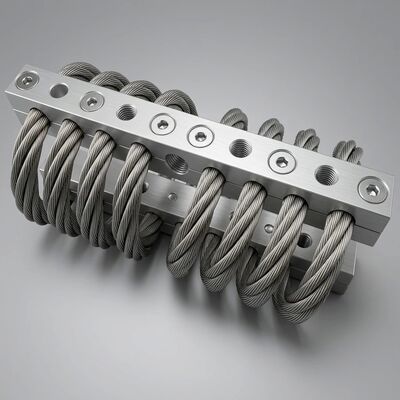

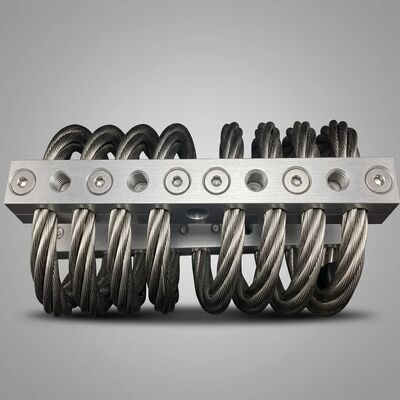

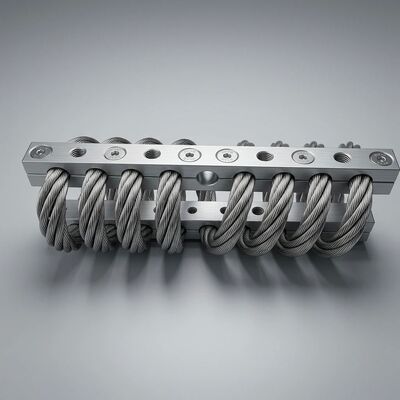

The JGX-1598D-557B separates the isolation function from the mounting interface. At its core is a 6-coil helical wire rope element formed from 8.0 mm AISI 304 stainless steel, terminated at both ends by 6061-T6 aluminum clamping bars. The clamping bars themselves serve as universal mounting adapters: each bar contains precision-machined slots oriented at multiple angles, accepting standard metric and imperial fasteners.

Available mounting arrangements from a single isolator platform:

• Standard bar-to-bar: Equipment foot mounts directly to the upper clamping bar; lower bar bolts to the foundation or support frame. The default arrangement for new-build machinery where both mounting surfaces are parallel and flat.
• Bar-to-plate adapter: A machined base plate bolts to the lower clamping bar and provides a stud-mounted interface. This converts the isolator to a drop-in replacement for existing elastomeric stud mounts without modifying the equipment base or foundation drilling pattern.
• 45-degree inclined mounting: When primary excitation arrives at an angle to the horizontal—common with V-configuration diesel engines, inclined conveyor drives, and tilted pump packages—the 45° slot orientation aligns the isolator's principal compliance axis with the dominant vibration vector. This maximizes isolation efficiency compared to perpendicular mounting.
• 90-degree vertical orientation: For installations where vertical space is constrained but horizontal clearance is available. The clamping bars mount vertically, keeping the overall installed height below 150 mm while preserving full multi-axis compliance.

Each configuration maintains the same load rating (80 kg static, 120 kg shock per mount) and the same 6-DOF isolation characteristic. Equipment OEMs can standardize on a single isolator series across their entire product range, reducing procurement complexity, qualifying one set of performance data, and maintaining common spare parts inventory.

Verified Multi-Axis Performance

The helical wire rope geometry inherently provides compliance in every direction, but the JGX-1598D-557B's performance has been quantitatively characterized across all six degrees of freedom through instrumented multi-axis testing:

• Compression (Z-axis): Static deflection of 4-12 mm across the 0-80 kg load range. Stiffness increases nonlinearly with deflection, providing a soft initial response for small-amplitude vibration isolation with progressively firm restraint against large-displacement shock events.
• Tension (Z-axis reverse): The interlocking clamping bar groove profile mechanically captures the wire rope termination, maintaining structural continuity under uplift forces. Conventional clamped-only designs risk rope pull-out under tension; the JGX-1598D-557B's groove geometry eliminates this failure mode.
• Shear (X and Y axes): Lateral compliance accommodates horizontal excitation components from rotating unbalance, misalignment, and seismic ground motion. The coil structure buckles elastically and returns to center without residual offset.
• Roll, Pitch, Yaw (rotational about X, Y, Z): Differential deflection across the coil assembly accommodates angular motion, protecting equipment with uneven mass distribution or off-center mounting points from torsional vibration transmission.

Across all axes, the resonance amplification factor remains below 3—meaning that even when the excitation frequency coincides exactly with the system natural frequency, the isolator does not magnify the input. For variable-speed rotating machinery that sweeps through resonance during every start-stop cycle, this characteristic is essential for long-term reliability.

System-Level Advantages of a Standardized Isolator Platform

Beyond the direct performance benefits, adopting the JGX-1598D-557B across an equipment family creates compounding operational advantages:

• Spare parts simplification: One isolator part number serves pumps, compressors, generators, and auxiliary equipment. Maintenance stores carry fewer SKUs, and field technicians need familiarity with only one installation procedure.
• Predictable performance: Engineering teams qualify the JGX-1598D-557B's load-deflection and transmissibility characteristics once, then apply the validated data across all future equipment designs. Each new machine does not require a new isolation qualification program.
• Retrofit compatibility: The bar-to-plate adapter option allows the JGX-1598D-557B to replace aging elastomeric mounts on in-service equipment without drilling new foundation holes or modifying equipment bases. Maintenance teams can upgrade isolation performance during scheduled outages without structural modifications.
• Global supply consistency: As an all-metal product manufactured to controlled metallurgical and dimensional specifications, the JGX-1598D-557B delivers identical performance regardless of production batch or shipping destination. No batch-to-batch cure variation as experienced with molded rubber products.

Comprehensive Technical Data

Where the JGX-1598D-557B Platform Approach Delivers Maximum Value

• Marine Drivetrain Systems: A single JGX-1598D-557B configuration isolates main propulsion engines, reduction gearboxes, and shaft bearings across an entire vessel class. Bar-to-plate adapters enable drop-in replacement of legacy mounts during dry-dock periods without hull modifications.
• Distributed Power Generation: Diesel and natural gas generator sets from 50 kVA to 500 kVA share the same isolator platform. The 45-degree slot option optimizes isolation for V-block engines where primary excitation is at a 45-degree angle to the skid plane.
• Factory Automation Cells: Robot pedestals, pick-and-place gantry bases, and vision system mounts all benefit from identical isolator performance specifications. Maintenance teams stock one part number and apply consistent installation torque values across every machine in the facility.
• Locomotive & Rolling Stock: Underframe-mounted auxiliary power supplies, HVAC compressor packs, and traction electronics cabinets endure years of track-induced shock loading. The bar-to-bar configuration with through-bolted clamping bars maintains preload despite continuous vibration.
• Wind & Solar Power Electronics: Inverter cabinets and transformer enclosures in nacelle and ground-mount installations face daily temperature cycles exceeding 60°C amplitude. The all-metal JGX-1598D-557B maintains consistent stiffness from desert noon to midnight without the thermal drift that plagues elastomeric alternatives.

Contact our applications team now with your equipment mass, mounting footprint, and primary excitation direction. We will specify the optimal JGX-1598D-557B configuration, provide validated load-deflection data for your specific operating point, and deliver a quotation within one business day.
