JGX-0240D-7.7A Wire Rope Vibration Isolator — Procurement & Integration Guide

Introduction

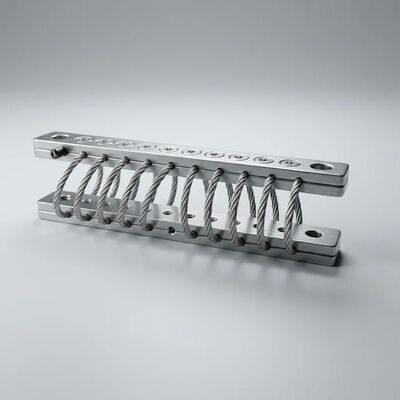

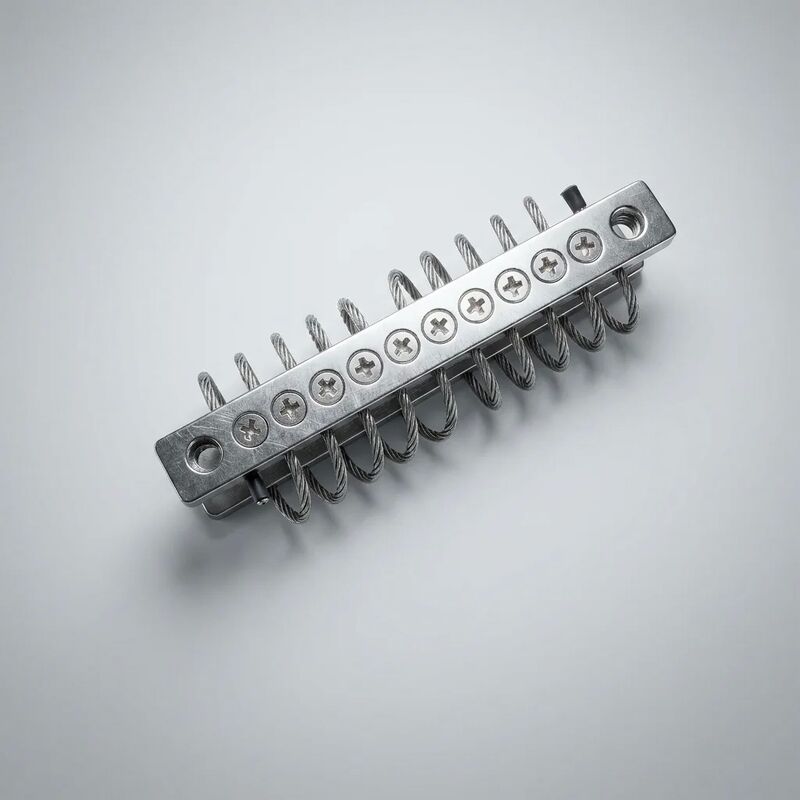

Selecting a vibration isolator involves more than matching a load rating. The full procurement decision spans dimensional compatibility, mounting interface requirements, delivery lead time, regulatory documentation, installation labour, and total lifecycle cost. This guide provides the complete information needed to specify, order, integrate, and maintain the JGX-0240D-7.7A — an 8-coil, 7.7mm stainless steel 304 wire rope isolator rated for 240 kg per mount, supported by scalable modular design and rapid delivery from pre-configured stock.

Product Identification & Ordering Reference

Physical Specifications & Dimensional Data

Performance Specifications

Scalable Modular Platform: Configure Your Specification

The JGX-0240D-7.7A is part of a modular platform where the core damping element (8-coil 7.7mm SS304 wire rope) is paired with selectable mounting configurations and finishes. This architecture enables rapid delivery from stocked sub-components — most standard configurations ship within 3–5 working days.

Mounting Configuration Options

• Base-to-Base (Standard): Two identical mounting plates — one attached to the equipment base frame, one to the foundation or supporting structure. This is the default configuration for general industrial equipment isolation.
• Base-to-Equipment: One plate mounts to the equipment frame; the other plate is replaced with a direct bolt-through interface for applications where the isolator sits between the equipment foot and a machine-specific bracket.
• Custom Orientation: For installations where the primary vibration input is not aligned with gravity (angled equipment, wall-mounted machinery), contact our engineering team with your mounting geometry for a configuration review.

Surface Finish Selection

• Electropolished (Standard): Recommended for most applications. Provides a clean, smooth surface with enhanced corrosion resistance and reduced contaminant adhesion. Suitable for marine, food processing, pharmaceutical, and general industrial environments.
• Passivated (Optional): Additional chemical passivation treatment to maximize the chromium oxide passive layer. Recommended for ultra-high-purity applications or environments with continuous exposure to aggressive chemical cleaning agents.
• Black Oxide (Optional): Aesthetic finish for applications where visual integration with dark-coloured equipment is desired. Note: this is a cosmetic treatment and does not enhance corrosion resistance; not recommended for outdoor or marine installations.

Regulatory Documentation Package

The following documentation is available to support procurement, integration, and regulatory compliance:

Delivery & Logistics

Selection Worksheet

Use the following worksheet to confirm the JGX-0240D-7.7A is the correct specification for your application:

1. Total Equipment Weight: _____ kg (include all permanently attached components: piping, wiring, access platforms, fluid inventory)
2. Number of Mounting Points: _____ (typically 4 or 6 for rectangular equipment bases)
3. Load per Isolator: Line 1 ÷ Line 2 = _____ kg/mount
4. Check: Is the value from Line 3 between 96 kg and 192 kg? □ Yes (optimal) □ No (consider different model or adjust mount count)
5. Dominant Vibration Frequency(ies): _____ Hz (if unknown, list equipment RPM and motor pole count)
6. Check: Is the dominant frequency above 20 Hz? □ Yes (isolation region, excellent performance) □ 10–20 Hz (transition region, verify with application engineering) □ Below 10 Hz (near resonance — evaluate carefully)
7. Environment: □ Indoor controlled □ Indoor industrial □ Outdoor sheltered □ Outdoor exposed □ Marine/coastal □ Washdown □ High-temperature (above 80°C) □ Low-temperature (below -20°C)
8. Surface Finish Selection: Based on Line 7 → □ Electropolished □ Passivated

Installation Checklist

• □ Verify mounting surface flatness ≤ 0.5 mm across isolator footprint
• □ Clean mounting surfaces — remove paint, scale, weld spatter at bolt contact points
• □ Position isolators symmetrically under equipment base — equal load distribution is critical
• □ Insert M12 stainless steel bolts (A2-70 minimum) with flat washers under head and nut
• □ Do NOT substitute carbon steel fasteners — galvanic compatibility required
• □ Tighten in diagonal pattern to 45–55 N·m (dry threads)
• □ Verify all wire rope coils have ≥ 25 mm free clearance in all directions after tightening
• □ Check connected piping/conduit/ductwork includes flexible sections to prevent load path bridging
• □ Measure and record static deflection at each mount — variation should be within ±2 mm across all isolators
• □ Retain installation records including torque values and deflection measurements for warranty file

Lifecycle Cost Comparison

Evaluating vibration isolation on purchase price alone consistently leads to higher total cost. Consider this representative 15-year equipment lifecycle:

The JGX-0240D-7.7A typically reaches cost parity with rubber mounts within the first replacement cycle (3–5 years) and delivers net savings thereafter. For remote, offshore, or inaccessible installations where a single maintenance visit costs more than the isolator itself, the economic case is decisive from day one.

Contact & Ordering

To request a formal quotation, arrange samples for evaluation, or discuss a custom configuration:

• Standard Orders: Specify model JGX-0240D-7.7A, quantity, surface finish, and delivery address. Standard configurations ship within 3–5 working days from order confirmation.
• Technical Inquiries: Provide equipment weight, mounting point count, dominant vibration frequencies, and operating environment for application-specific recommendations.
• OEM & Volume Programs: Contact our sales team for volume pricing tiers, scheduled delivery agreements, and vendor-managed inventory options.
• Samples: Evaluation samples available for qualified projects — request with your application details for prompt processing.
