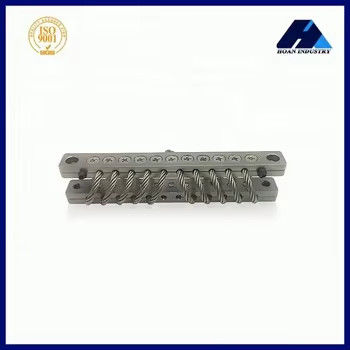

Name: JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0958A-99A
Availability: InStock

Rumah > Produk > Isolator getaran tali kawat >

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments

Steel Wire Rope Vibration Isolator

Precision Instruments Wire Rope Vibration Isolator

Place of Origin:

China

Nama merek:

Hoan

Sertifikasi:

ISO9001:2015

Nomor model:

JGX-0958A-99A

Hubungi Kami

Minta Kutipan

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments

Rincian produk

Jenis pemasaran:

Produk Baru 2020

Bahan tali kawat:

Baja galvanis

Efisiensi Isolasi:

90%

Kapasitas Beban:

50kg

Laporan pengujian mesin:

Disediakan

Lebar:

108mm

Kekakuan Aksial:

50N/mm

Orientasi instalasi:

Vertikal atau Horisontal

Frekuensi getaran:

5-50HZ

Kapasitas Muatan Produk:

Dapat disesuaikan

Pelabuhan:

Xi'an

Rentang Frekuensi Isolasi:

5Hz hingga 100Hz

Produk relatif:

Peredam Aliran Balik

Kisaran muatan:

43.149kg

Berat badan:

0.5kg

Menyoroti:

Steel Wire Rope Vibration Isolator

Precision Instruments Wire Rope Vibration Isolator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Produk terkait

JGX-0648D-56A Isolator Getaran Tali Kawat yang Didesain dengan Hati-Hati untuk Kinerja Optimal di Berbagai Perangkat

Dapatkan Harga Terbaik

JGX-0648a-79a Isolator getaran tali kawat untuk kondisi kerja yang kompleks dengan paparan bahan kimia

Dapatkan Harga Terbaik

JGX-0480D-24A Wire Rope Vibration Isolator Karakteristik elastis dan peredam yang sangat baik untuk penyerapan getaran

Dapatkan Harga Terbaik

Isolator getaran tali kawat JGX-0648A-33A yang kuat dan ringan untuk aplikasi sensitif berat

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JGX-0958A Series

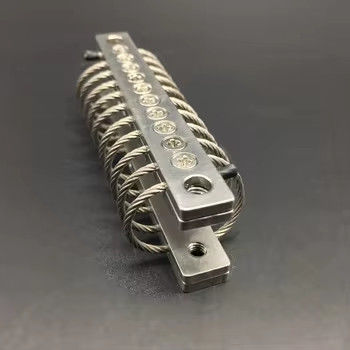

The JGX-0958A steel wire rope vibration isolator developed by Xi'an Hoan Microwave Co., Ltd. is a high-performance shock-resistant vibration isolation device specially designed for precision instruments, electronic equipment and military facilities. The product is formed by winding high-quality stainless steel wire ropes, and realizes multi-directional vibration isolation through a unique structural design, effectively absorbing vibration and impact energy from equipment operation or the external environment. It has a wide operating temperature range (-40℃～+120℃) and strong corrosion resistance, making it suitable for complex working conditions such as ships, vehicle-mounted radars and avionics.

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments 0

Static-Load Curve

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

JGX-0958A-99A Steel Wire Rope Vibration Isolator Effective Vibration And Impact Energy Absorption For Precision Instruments 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19

* The material of the wire rope splint *

Stainless Steel or Aluminum can be selected

* Surface treatment of aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
