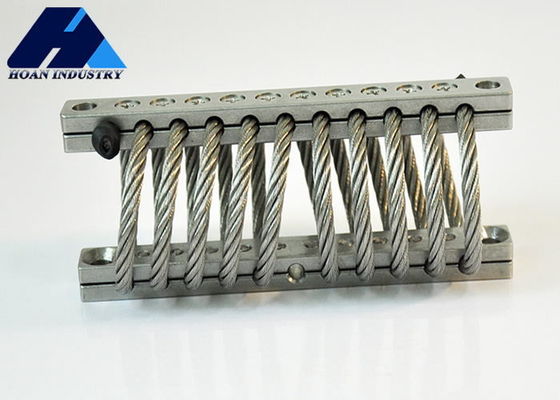

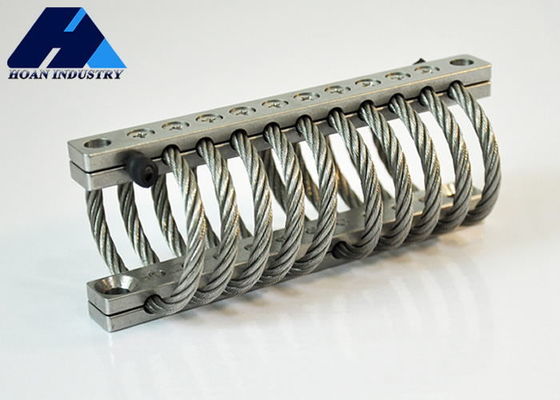

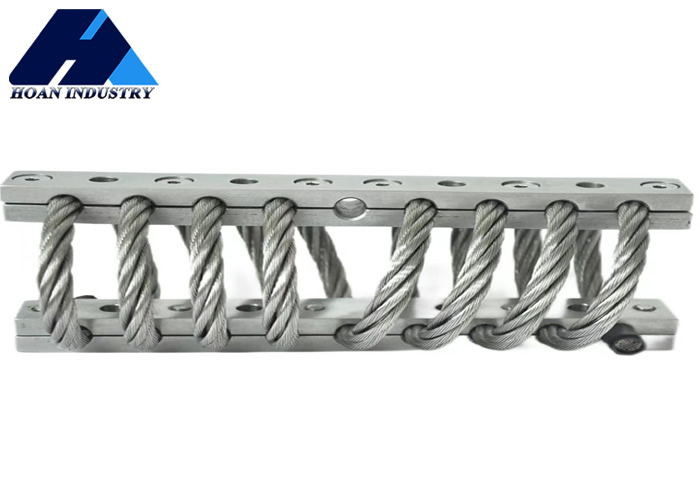

Name: Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0958A-108A
Availability: InStock

Rumah > Produk > Isolator getaran tali kawat >

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment

105mm Width Wire Rope Vibration Isolator

JGX-0958A-108A Wire Rope Vibration Isolator

PDF Wire Rope Vibration Isolator

Tempat asal:

Cina

Nama merek:

Hoan

Sertifikasi:

ISO9001:2015

Nomor model:

JGX-0958A-108A

Hubungi Kami

Minta Kutipan

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment

Rincian produk

Bahan:

Baja tahan karat

Ukuran Lubang Pemasangan:

8MM

Frekuensi gema:

40Hz

Aplikasi:

Industri, Otomotif, Dirgantara

Lubang pemasangan:

Frekuensi isolasi:

10Hz

Jenis Instalasi:

Vertikal

Fitur:

Isolasi Getaran

Karakteristik:

frekuensi kerja lebar, umur panjang

Pengemasan:

Pengepakan standar

Lebar:

105MM

Kapasitas Muatan Produk:

Dapat disesuaikan

Kekakuan Aksial:

50N/mm

Format Menggambar:

DWG dan PDF

Tipe Isolasi:

Getaran

Menyoroti:

105mm Width Wire Rope Vibration Isolator

JGX-0958A-108A Wire Rope Vibration Isolator

PDF Wire Rope Vibration Isolator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, MoneyGram, Western Union

Produk terkait

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Mounting Vertikal untuk melindungi peralatan Anda dari getaran dan kejut

Dapatkan Harga Terbaik

Video

Isolator getaran tali kawat stainless steel untuk udara dan komunikasi tahan air dan daya tahan JGX-0400-31.5A

Dapatkan Harga Terbaik

JGX-0648D-56A Isolator Getaran Tali Kawat yang Didesain dengan Hati-Hati untuk Kinerja Optimal di Berbagai Perangkat

Dapatkan Harga Terbaik

JGX-0648A-45A Wire Rope Vibration Isolator Efektif Pengurangan Getaran untuk Mesin Otomotif

Dapatkan Harga Terbaik

Hubungi Kami

86-29-88292913

Hubungi Sekarang

Deskripsi Produk

JGX-0958A Series

Compared with traditional rubber vibration isolators, JGX - 0958A has a longer service life (up to more than 5 years) and no performance degradation. Its three-dimensional vibration isolation characteristics can simultaneously absorb lateral, longitudinal and torsional vibrations, with a vibration isolation efficiency of >90%. The product has passed the GJB150 - 2009 military standard test, with an impact resistance of 30g/11ms, and can still maintain stability under extreme conditions. User measured data shows that the vibration amplitude of the equipment is reduced by more than 60% after installation.

The product provides a variety of installation interfaces from M6 to M8, supporting horizontal or vertical installation. During installation, it is necessary to ensure uniform load distribution to avoid unilateral overload. It does not require lubrication or regular adjustment during use, and only needs to check whether the steel wire rope has abnormal wear once a year. Hoan Microwave provides detailed load - displacement curve charts, so that users can select the optimal installation points according to the actual load to maximize the vibration isolation effect.

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment 0

Static-Load Curve

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

Wire Rope Vibration Isolator JGX-0958A-108A Long Service Life Optimal Vibration Isolation for Your Equipment 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19
